Sloped Drain Pan - 24" x 16" x 3" - Galvanized Steel

This Sloped Bottom Drain Pan is designed to move liquids from one end of the drain pan to the other. The back has both a slanted bottom and sloped sides to guide captured liquids to drain hole at the end of the drain pan. The heavy gauge galvanized steel material used to make this Sloped Drain Pan is great for corrosion resistance and economy. Our Sloped Drain Pan is made with fully welded corners and hemmed edges for added strength. Material options are stainless, galvanized, aluminum or cold rolled steel. If your situation has a constant flow requirement click the Request a Quote link below to get information on a custom tray.

Product Overview:

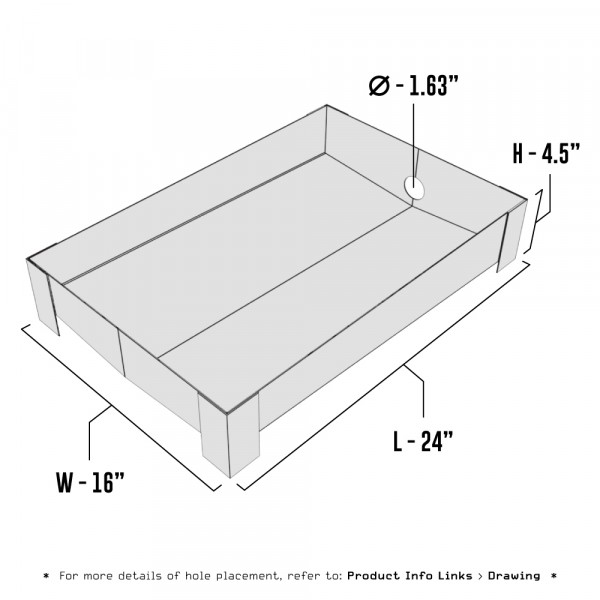

  • 24"L x 16"W x 4.5"H
  • 3.5" to 4.5" Bottom Slope
  • 1.63" Diameter Drain Hole on 4.5" Wall at Slope Bottom
  • 14 GA Galvanized Steel
  • All edges hemmed at .5" for increased durability.
  • Welded water tight GUARANTEED
  • Multiple material choices
  • Made in the USA
If your application requires a different material, material thickness, powder coating, or any other custom specification, please Request a Quote and reference 150164. You may also download the production drawing to make edits to the dimensions of the part. Please feel free to send us an email or call us with any questions you may have. Production lead time is approximately 3 weeks.

Sloped Drain Pan - 24" x 16" x 3" - Galvanized Steel



SKU: 150164
Made to order: 6 - 8 Weeks
Please call for pricing. (877) 801-7417
Additional product info


150164
Weight
17.00 lbs
Width
16.00 in
Height
4.50 in
Length
24.00 in
Compatible model


Customize This Pan

If your application requires a different material, material thickness, powder coating, or any other custom specification, please request a quote and reference 150164. You may also download the production drawing to make edits to the dimensions of the part. Please feel free to send us an email or call us with any questions you may have. Production lead time for custom pans is approximately 3 weeks.
