This is a Large Aluminum Drain Pan with a 18 inch notch out of one corner for accommodating a structural fixture. The Aluminum Drain Pan covers a spill area of 68 inches x 30 inch and has 1 inch tall walls. There is a pre cut .50 inch diameter drain hole with a pipe fitting in the bottom of the pan. The drain is positioned at 8 inch from the back corner of the pan on the 30" side. The aluminum material used to manufacture this Large Drain Pan creates a metal pan that is light and more easily handled.
Product Overview:
- 68"L x 30"W x 1"H
- Notched 18" x 14" corner for structural member accommodation and .5" pipe fitting
- 16 GA Aluminum
- All edges hemmed at .5" for increased durability.
- Welded water tight GUARANTEED
- Multiple material choices
- Made in the USA

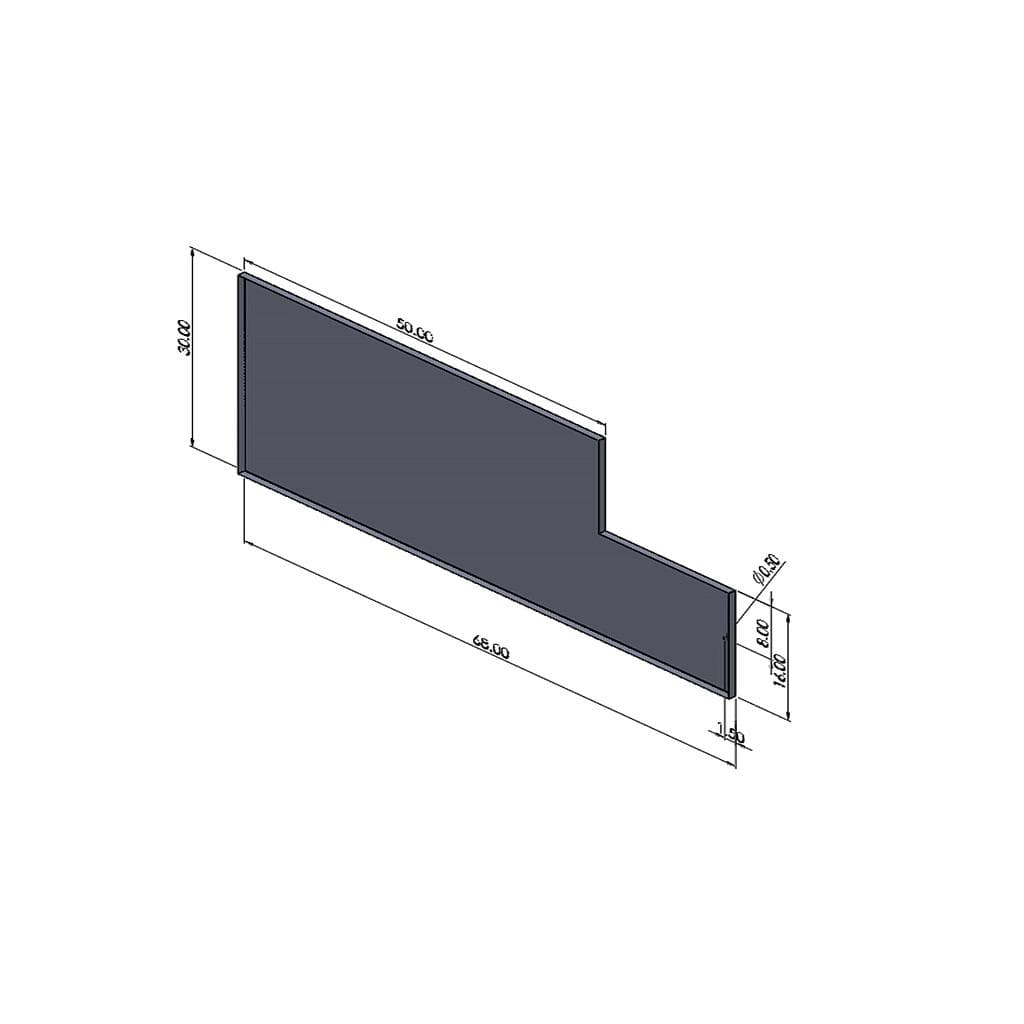

If your application requires a different material, material thickness, powder coating, or any other custom specification, please Request a Quote and reference KM-03588. You may also download the production drawing to make edits to the dimensions of the part. Please feel free to send us an email or call us with any questions you may have. Production lead time is approximately 3 weeks.
