A-Coil Drain Pan - 23" x 17" x 1.5" - Galvanized Steel

This A Coil Pan is designed specifically for working with a A Coil for an air conditioner.  The pan is made out of galvanized steel material for corrosion resistance.  There is a large cut out on the top flange of the A Coil Pan and a small drain hole of .75 inch diameter on one of the 23 inch sides of the pan.

Product Overview:

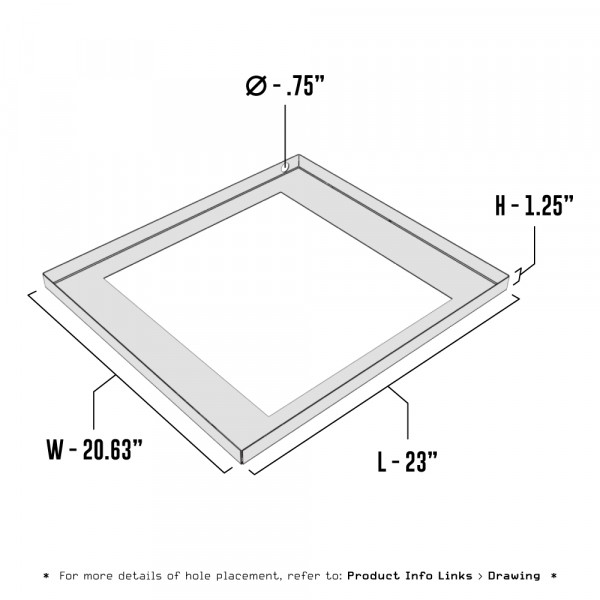

  • 23"L x 20.68"W x 1.25"H
  • 16" x 17" Cut Out
  • .75" Diameter Drain Hole on 23" Wall
  • 14 GA Galvanized Steel
  • All edges hemmed at .5" for increased durability.
  • Multiple material choices
  • Made in the USA
If your application requires a different material, material thickness, powder coating, or any other custom specification, please Request a Quote and reference KM-02410. You may also download the production drawing to make edits to the dimensions of the part. Please feel free to send us an email or call us with any questions you may have. Production lead time is approximately 3 weeks.

A-Coil Drain Pan - 23" x 17" x 1.5" - Galvanized Steel


SKU: KM-02410
Made to order: 21 Business Days
$315.00
Additional product info
KM-02410
Weight
10.00 lbs
Width
20.60 in
Height
1.25 in
Length
23.00 in
Compatible model


Attachments
Customize This Pan

If your application requires a different material, material thickness, powder coating, or any other custom specification, please request a quote and reference KM-02410. You may also download the production drawing to make edits to the dimensions of the part. Please feel free to send us an email or call us with any questions you may have. Production lead time for custom pans is approximately 3 weeks.
